Accessories and spare parts for oil separators

BELKI offers accessories for our oil separators in the form of pipes and grease rakes for high viscosity leak oil and grease, as well as a trolley for our smaller separators if increased mobility is desired.

In addition, a repair kit for the oil separators is available. The repair kits contain spare parts for 95% of all repairs.

Accessories for oil separators

The stirrer is used when thick / highly viscous oil is present. The oil is slowly stirred in the oil chamber of the oil separator so that it can flow freely out of the oil outlet. The stirrer can be used with the oil separators type 211H and 321.

1
Stirrer for 211H/321

T21-100-000

The BELKI auger is used when thick / highly viscous oil is present. The oil in the oil chamber of the oil separator is led to the center of the oil outlet. The auger can be used with the oil separators type 60S, 200LS and 500LS.

1
Auger for 60S/200LS/500LS

T04-009-000

The oil separator type 211 or 321 can optionally be mounted on a trolley (H: 1020 mm), which makes the oil separator mobile so that it does not need to be fixed on one machine. The outlet height of the oil separator is at least 650 mm.

1
Trolley for 211H/321

T44-000-000

The oil separator type 211 or 321 can optionally be mounted on a trolley (H: 1470 mm), which makes the oil separator mobile so that it does not need to be fixed on one machine. The outlet height of the oil separator is at least 1100 mm.

1
High trolley for 211H/321

T44-100-010

This BELKI key is a special tool for easier opening of a 1/2” y-filter.

1
Key for Y-filter - small 1/2"

T099-569-251

This BELKI key is a special tool for easier opening of a 5/4” y-filter.

1
Key for Y-filter - big 5/4"

T099-5120-250


Spare parts for oil separators

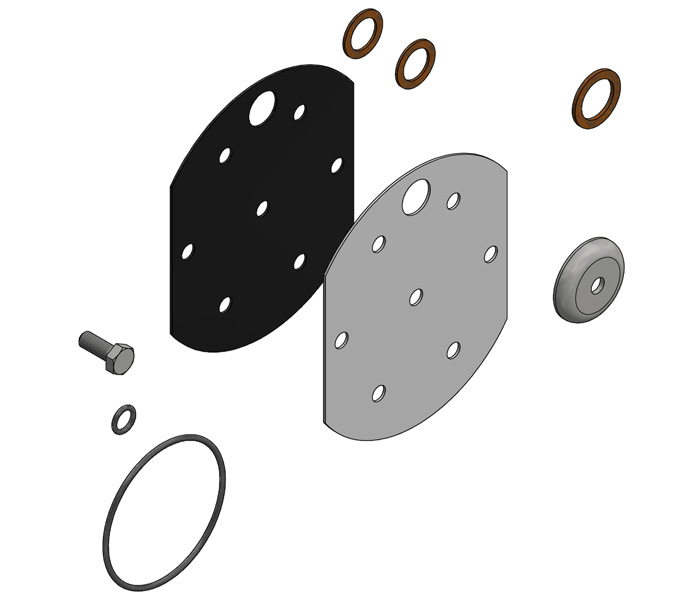

Repair Kit for Diaphragm Pump for Oil Separator Type 201. The repair kit contains spare parts, so the most repairs on the diaphragm pump can be done.

1
Repair kit for diaphragm pump for 201

T21-201-261

Repair Kit for Diaphragm Pump for Oil Separator Type 211H. The repair kit contains spare parts, so the most repairs on the diaphragm pump can be done.

1
Repair kit for diaphragm pump for 211H

T21-211-460

Repair Kit for Diaphragm Pump for Oil Separator Type 321/301 The repair kit contains spare parts, so the most repairs on the diaphragm pump can be done.

1
Repair kit for diaphragm pump for 321/301

T206-321-100

Repair Kit for Diaphragm Pump for Oil Separator Type 60S. The repair kit contains spare parts, so the most repairs on the diaphragm pump can be done.

1
Repair kit for diaphragm pump for 60S

T04-060-100


Product sheets for repair kits for diaphragm pumps for oil separators can be downloaded here
